Description

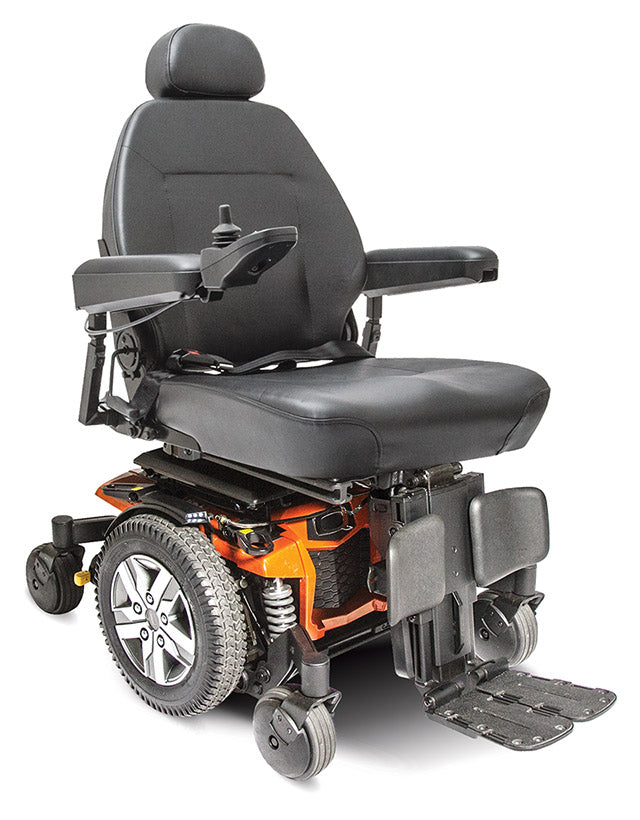

With features like standard 6 mph motors and advanced responsiveness, the Q6 Edge® 2.0 is engineered to meet the performance needs of the most active user. The Q6 Edge 2.0 accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value, and is available with iLevel® technology.
Specifications:
Model | Q6 Edge® 2.0 |
Drive Configuration | Mid-wheel drive |
Drive Wheels | 14" Solid Optional: 14" Pneumatic Optional: 14" Knobby |
Caster Wheels |
Front: 6" Solid Rear: 6" Solid |
Anti-Tip Wheels | N/A |
Maximum Speed | Up to 6.25 mph |
Ground Clearance | 2.7" (battery tray) |
Turning Radius | 20.5" |
Overall Length | 32.23" |
Base Width | 24.4" |
Seating Sizes |
TRU-Balance® 3 Synergy®/Static: W: 10-22" D: 10-22" Power Tilt: W: 12-22" D: 12-22" Lift & Tilt: W: 12-22" D: 12-22" TRU-Balance® Flex Seat W: 15-22" D: 15-20" |
Seat-to-Floor Heights |
TRU-Balance® 3 Synergy®: 15.875-17.875" Static: 17.5-19.5" TRU-Balance® Flex Seat: 16.5-18.25" Lift & Tilt: 17.5-19.5" TRU-Balance Flex Seat 16.5" – 19.5" |
Manual Recline | Yes |
Battery Size | NF-22 (2) |
Battery Weight | 38 lbs. |
Available Electronics | 75A Q-Logic NE 75A Q-Logic NE+ 120A Q-Logic 3 EX |
Battery Charger | 8A Off-board |
Motor Packages | 2-pole Mid-Wheel 6® |
Weight Capacity | 300 lbs. |
Base Weight | 138.6 lbs. |
Medicare Code Coverage |
Group 3: Standard (K0848/K0849) Single Power (K0856/K0857) Multiple Power (K0861) |
Features:
- 6.25 mph high-speed motors standard
- Responsive handling
- Precise control
- Advanced performance
- Bold aesthetics
- Optional iLevel's patented Extra Stability Technology® enhances safety while performing transfers, reach, and numerous other activities of daily living

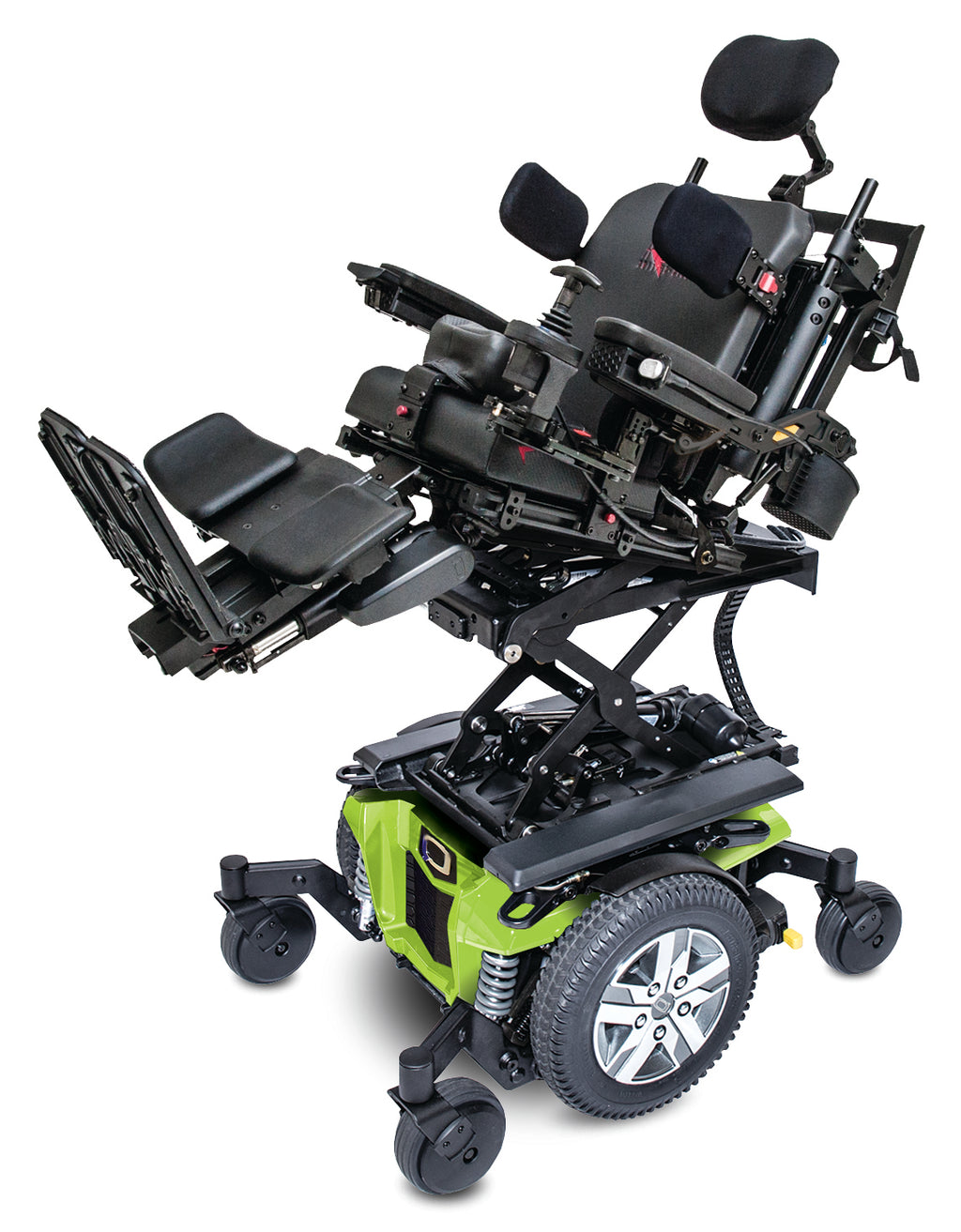

- Optional iLevel® enables up to 12" of seat elevation while at walking speed (up to 3.5 mph)
- iLevel is retrofittable on the Q6 Edge® 2.0
- Available with Accu-Trac Advanced Tracking Technology

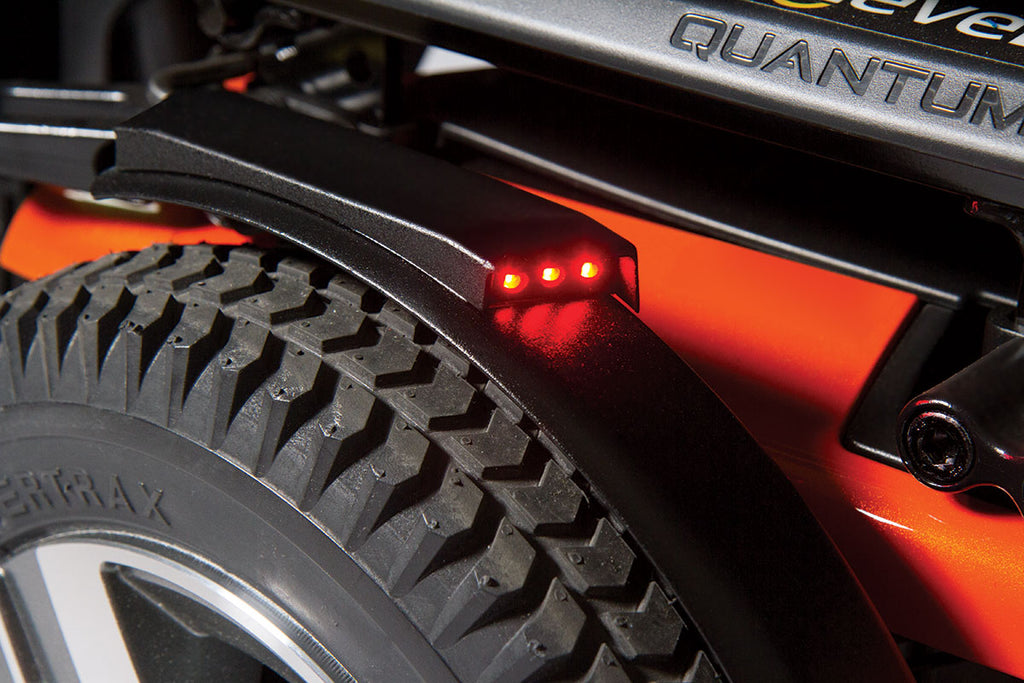

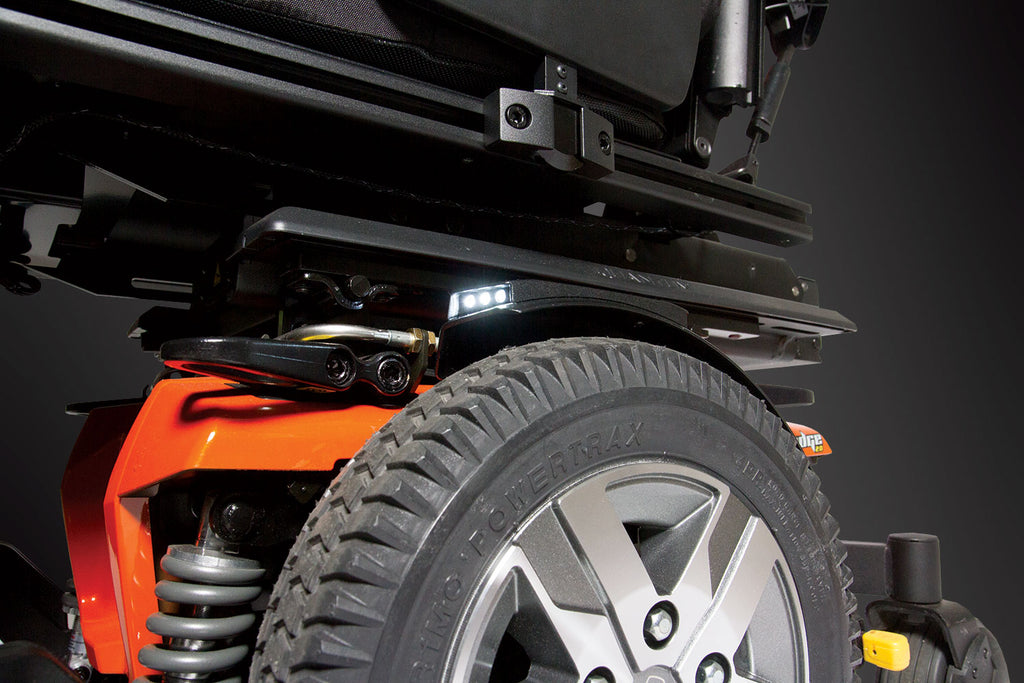

- Optional LED fender lights (standard with iLevel)
- Available with WC19 crash-test approved occupied transit kit option on tilt & recline and iLevel
